Powder Coating
  Powder coating, sometimes called dry paint, is well suited to today¡¦s requirements for quality finishes that are environmentally friendly. It offers the designer a wide array of colours, durable finishes, and other specifications. Different powders are available in a range of costs and quality. We are currently using Dulux and Akzo Nobel from Australia and their wide range of colour can be found at their website:
  www.interpon.com
  www.dulux.com

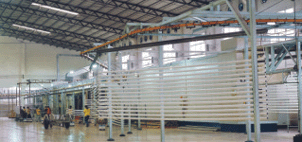

  We have 3 powder coating lines in our Powder Coating Department. With the advanced coating equipments as efficient guns and fast colour change recovery systems, and the longest Chromeplate / powder coating length with 12m long, we can satisfy your finishing needs.



Powder Coating Line #1

featuring 30mtr curing oven, straight line conveyor and 8 automatic spray guns from Australia.




  Capability - 280Mt. Monthly



Powder Coating Line #2

featuring 50mtr curing oven, turn around conveyor line conveyor and 12 automatic spray guns.




  Capability - 400Mt. Monthly



Powder Coating Line #3

featuring 45mtr curing oven, turn around conveyor, 2 automatic colour change booths mounted on platform, and 24 automatic spray guns from Australia.




  2 automatic colour change booths mounted on platform

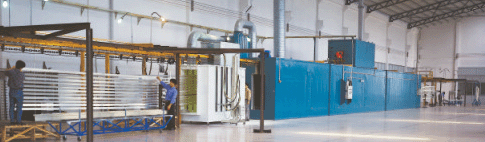

  45m curing oven:


  This is direct gas fired, forced convection two zone Cure Tunnel Oven with individual heater box, fan and burner for each zone.

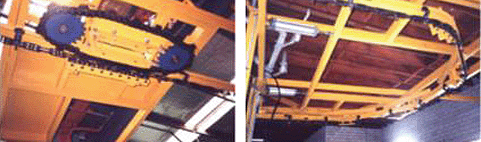

  Efficient turn around conveyor:


  Heavy duty overhead conveyor system to transport the product through the pretreatment, dryoff oven, powder spary booth and cure oven.

  Automatic cleaning booth:



  Powder Coating Quality Control Department:




To ensure the applied powder coating will meet the specified performance requirements, there are on-site tests to be performed as:

Solvent cure test - Usually straight MEK or a less aggressive solvent is applied to the powder coated part and resistance to the solvent is used to evaluate the degree of cure.

Adhesion test - Cross Hatch tape pull test to evaluate the powder coating adhesion to the substrate.

Thickness - Testing instruments to accurately measure dry film builds. This is essential to ensure proper film builds are being applied.

Permeability - Usually for exterior applications, finished sample is placed in a pressure cooker with water, testf for adhesion.

Impact test - Evaluates powder adhesion and flexibility.

Hardness - Pencil hardness test evaluates powder hardness and cure.

Colour and gloss - Matched to coating supplier¡¦s standard panels.

Visual finish appearance - inspection of colour, gloss, flow, edge, coverage, texture etc. to powder coating suppliers standard.
