Extrusion

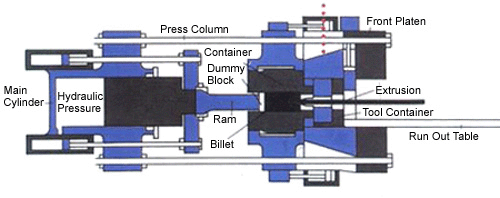

Press |
|
| |
 |
|
| |
We currently are using 500-ton
to 3,600-ton press with capabilities up to 280mm billet diameter.
Our presses allocation and their capabilities: |
|
 |
|
|
| |
| Press Tonnage |
500-ton
|
600-ton
|
800-ton
|
1,350-ton
|
1,750-ton
|
3,600-ton
|
| Quantity |
1
|
3
|
4
|
1
|
1
|
1
|
|
|
|
|
|
| |
| Press# |
Mt
|
Max. Billet
Diameter
|
Alternative
Billet Diameter
|
|
1
|
800
|
120mm
|
----
|
|
2
|
800
|
120mm
|
----
|
|
3
|
600
|
100mm
|
----
|
|
5
|
500
|
88mm
|
----
|
|
6
|
600
|
100mm
|
----
|
|
7
|
600
|
100mm
|
----
|
|
8
|
800
|
120mm
|
----
|
|
9
|
1,750
|
178mm
|
150mm(>90%
usage)
|
|
10
|
1,350
|
150mm
|
130mm(>90%
usage)
|
|
11
|
800
|
120mm
|
----
|
|
12
|
3,600
|
220mm
|
280mm
|
|
|
|
|
|
| |
Maximum Dimension / Minimum
Wall Thickness for Geometrics: |
|
| |
 |
|
| |
|
Dimension
|
Min. Wall Thickness
|
Max. Weight
|
| Square Tube |
220mm x 220mm
|
4mm
|
150kg
|
| Rectangular Tube |
280mm x 40mm
|
4mm
|
150kg
|
| Round Tube |
260mm (O.D.)
|
4mm
|
150kg
|
| Channel |
280mm x 40mm
|
4mm
|
150kg
|
| Flat Bar |
330mm
|
6mm
|
150kg
|
|
|
|
|
|
| |

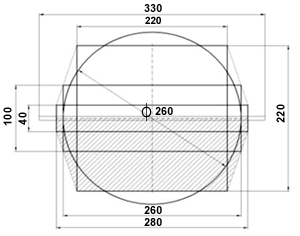

The Largest
Press Capability Diagram:
|
|
| |
|
|
